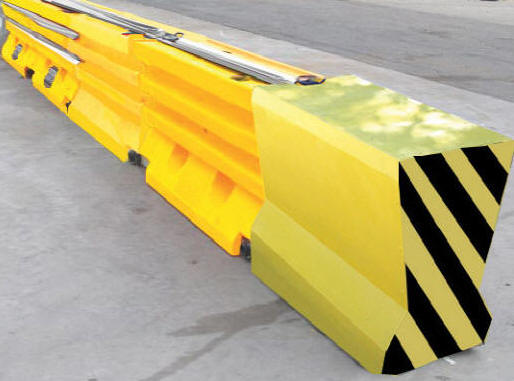

ACZ350 End Treatment
The ACZ350 Concrete End Treatment is available in TL-2 and TL-3 versions. The water-filled gating unit is NZTA compliant and perfect for 1-2 lane applications in conjunction with concrete barriers. Various Transition Adapters mean this unit can be used with T-Lok, JJ Hook or Pin and Loop style barriers.
Designed and tested to NCRP350 test level 3 by Energy Absorption Systems in the USA as an upgrade of the highly successful Trtion CET.
These units are also available FOR HIRE, check out the rentals section for more information.
Designed and tested to NCRP350 test level 3 by Energy Absorption Systems in the USA as an upgrade of the highly successful Trtion CET.
These units are also available FOR HIRE, check out the rentals section for more information.
Information
Key Features
-
Tl-2 or TL-3
- Water Filled
- Non Re-directive, Gating Unit

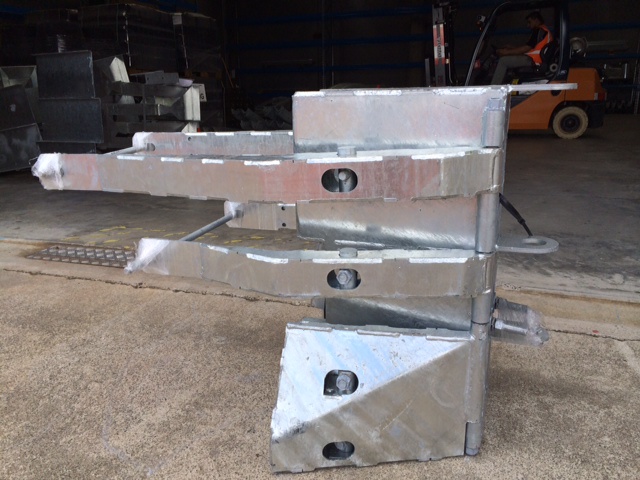

- Adjustable steel transition to fit most concrete barriers
- TL-3 Unit comes in only 4 easily installed sections
|
Specifications |
TL-2 |
TL-3 |
|
Length |
5.6M |
9.6M |
|
Width |
0.6M |
0.6M |
|
Height |
0.8M |
0.8M |
|
Weight (Empty) |
510kgs |
610kgs |
|
Weight (Full) |
1580kgs |
2800kgs |
